Extract temperature/salinity profiles at specified longitudes, latitudes, and times. This process mimics hydrographic stations from in-situ measurements (like a ship CTD station, or Argo float profile).
This notebook uses Oceanspy and demonstrates the interface to the Poseidon-viewer on SciServer.
Author: Tom Haine & Wenrui Jiang, Jun '23
import seaduck as sd
import oceanspy as ospy
import numpy as np
import matplotlib.pyplot as plt
plt.rcParams["figure.figsize"] = 12, 8od = ospy.open_oceandataset.from_catalog("ECCO")
od._ds = od._ds.drop_vars({"k", "k_u", "k_p1", "k_l"})
co_list = [var for var in od._ds.variables if "time" not in od._ds[var].dims]
od._ds = od._ds.set_coords(co_list)
od._ds = od._ds.drop_vars("time_bnds")
od._ds["Temp"] = od._ds["THETA"]
od._ds["S"] = od._ds["SALT"]
this_time = "1992-03-16T12:00:00.000000000"
# Select time of interest.
# This is cut and pasted (with editing to convert format) from Poseidon-viewer,
# but in future should be returned in the JSON object.
varList = ["Temp", "S"] # Select variables of interest.
Nvars = len(varList)
od._ds = od._ds.drop_vars([var for var in od._ds.data_vars if var not in varList])Define coordinates for interpolation from the Poseidon-viewer (or enter them manually):
ps = [
{"type": "Point", "coordinates": [-57.710530333876235, 33.062070736515295]},
{"type": "Point", "coordinates": [-89.55599488497559, 25.453020491528747]},
{"type": "Point", "coordinates": [-74.70605786848537, 13.952759739624767]},
{"type": "Point", "coordinates": [-59.06355926811892, 21.999755420813273]},
{"type": "Point", "coordinates": [-41.69588507736159, 22.43955659234939]},
{"type": "Point", "coordinates": [-45.113026771172656, 14.563543828761837]},
{"type": "Point", "coordinates": [-26.081872200732885, 6.414099524482438]},
{"type": "Point", "coordinates": [-17.396102656758963, -4.381322875209875]},
{"type": "Point", "coordinates": [-26.702603318403906, -7.125636489486197]},
{"type": "Point", "coordinates": [-32.51011235240231, -22.847802807885373]},
]
lons, lats = ospy.utils.viewer_to_range(ps)
Nstations = len(lons)seaduck.OceInterp interpolates the temperature and salinity to the specified coordinates.¶
This process makes synthetic hydrographic profiles from ECCO. Compute the potential density anomaly from the T/S data too.
tub = sd.OceData(od._ds)
times = sd.utils.convert_time(this_time)
Ntimes = times.size
depths = tub.Z.ravel()
Ndepths = len(depths)
sd_lons, sd_times, sd_depths = np.meshgrid(lons, times, depths, indexing="ij")
sd_lats, _, _ = np.meshgrid(lats, times, depths, indexing="ij")
sd_lons = np.ravel(sd_lons)
sd_lats = np.ravel(sd_lats)
sd_times = np.ravel(sd_times)
sd_depths = np.ravel(sd_depths)
[sd_Temp, sd_S] = np.array(
sd.OceInterp(tub, varList, sd_lons, sd_lats, sd_depths, sd_times)
)
sd_depths2 = sd_depths.reshape(Nstations, Ntimes, Ndepths).squeeze()
sd_S = sd_S.reshape(Nstations, Ntimes, Ndepths).squeeze()
sd_Temp = sd_Temp.reshape(Nstations, Ntimes, Ndepths).squeeze()

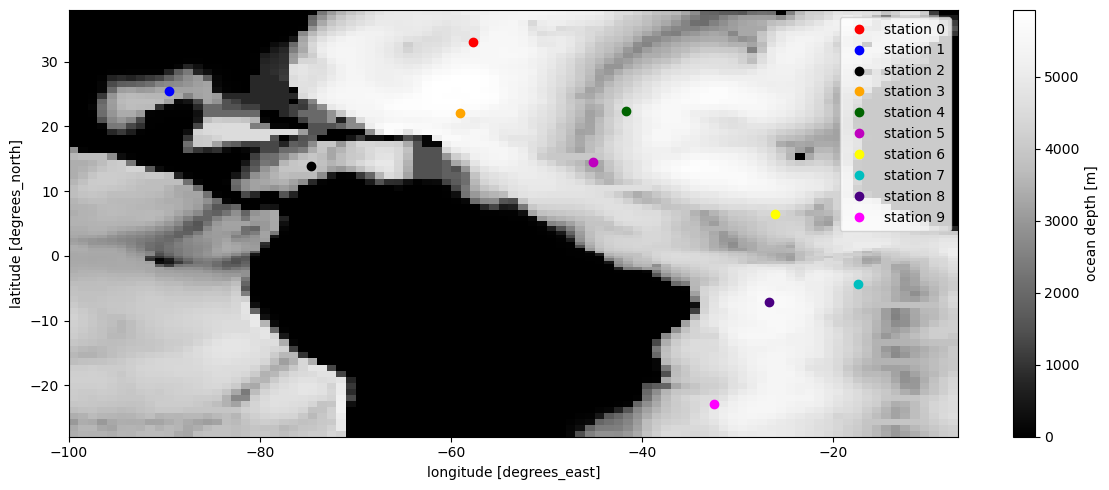

sd_sigma0 = ospy.utils.densjmd95(sd_S, sd_Temp, 0) - 1000.0Plot station locations:¶
cut_od = od.subsample.cutout(
XRange=[min(lons) - 10, max(lons) + 10], YRange=[min(lats) - 5, max(lats) + 5]
)
fig = plt.figure(figsize=(12, 5))
ax = cut_od.plot.horizontal_section(varName="Depth", cmap="Greys_r")
colors = [
"r",
"b",
"k",
"orange",
"darkgreen",
"m",
"yellow",
"c",
"indigo",
"magenta",
"green",
]
legestations_ds = np.arange(Nstations)
for i in range(Nstations):
plt.plot(
lons[i],
lats[i],
"o",
color=colors[i],
label="station " + str(legestations_ds[i]),
)
plt.legend()
plt.show()

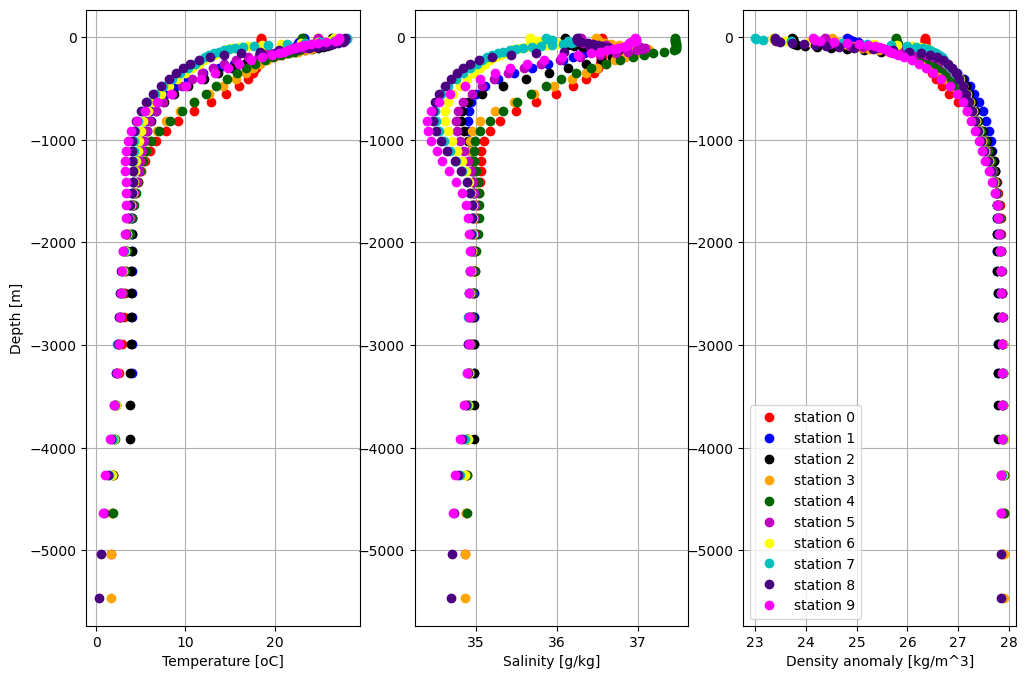

Plot vertical T/S station profiles:¶
for i in range(Nstations):
plt.subplot(1, 3, 1)
plt.plot(
sd_Temp[i, :],
depths,
"o",
color=colors[i],
label="station " + str(legestations_ds[i]),
)
plt.xlabel("Temperature [oC]")
plt.ylabel("Depth [m]")
plt.grid()
plt.subplot(1, 3, 2)
plt.plot(
sd_S[i, :],
depths,
"o",
color=colors[i],
label="station " + str(legestations_ds[i]),
)
plt.xlabel("Salinity [g/kg]")
plt.grid()
plt.subplot(1, 3, 3)
plt.plot(
sd_sigma0[i, :],
depths,
"o",
color=colors[i],
label="station " + str(legestations_ds[i]),
)
plt.xlabel("Density anomaly [kg/m^3]")
plt.grid()
plt.subplot(1, 3, 1)
plt.xlabel("Temperature [oC]")
plt.ylabel("Depth [m]")
plt.grid()
plt.subplot(1, 3, 2)
plt.xlabel("Salinity [g/kg]")
plt.grid()
plt.subplot(1, 3, 3)
plt.xlabel("Density anomaly [kg/m^3]")
plt.grid()
plt.legend()
plt.show()

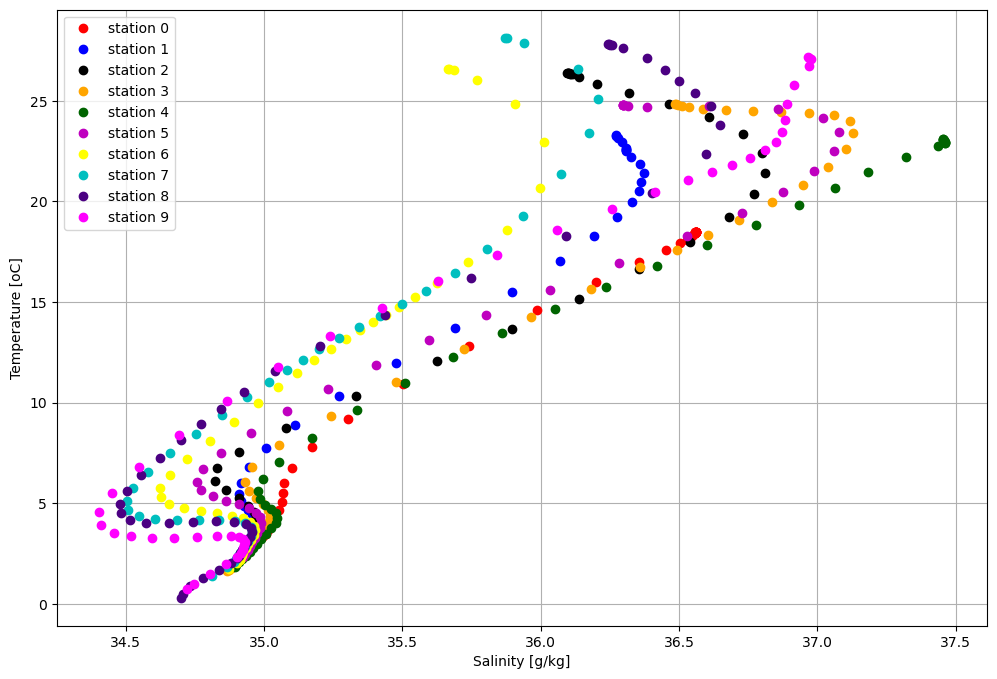

Plot T/S diagram.¶
for i in range(Nstations):
plt.plot(
sd_S[i, :],
sd_Temp[i, :],
"o",
color=colors[i],
label="station " + str(legestations_ds[i]),
)
plt.xlabel("Salinity [g/kg]")
plt.ylabel("Temperature [oC]")
plt.legend()
plt.grid()
plt.show()
